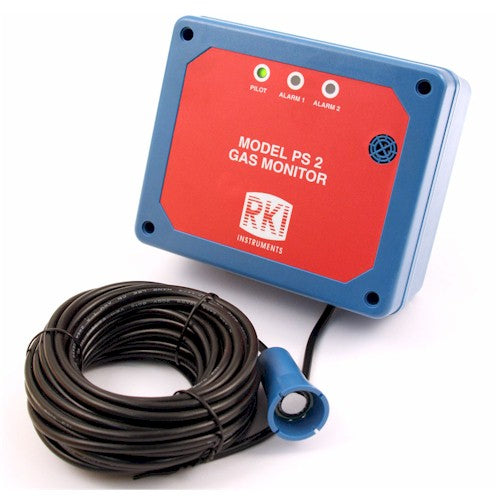

RKI PS2 Single Point Fixed System LEL Monitor

RKI PS2 Single Point Fixed System LEL Monitor

RKI

73-1021RK-01

  • $435.00
  • Save $20


The RKI PS2 is a perfect low cost solution for brewery applications and ethanol detection. Simple to use, easy to install. It comes calibrated and set from the factory.

Also great for hydrogen detection in battery rooms, or for LEL level detection of a variety of flammable or solvent vapors in general industry.

It utilizes a MOS (metal oxide sensor) for long lasting and low maintenance detection at LEL levels of many gases or vapors.

It even comes with two alarm levels for increasing gas or vapor levels for LEL level detection of flammable vapors. Each of the alarm levels activate a 12 amp relay inside the unit, and terminals are provided for wiring the relay to activate an external alarming device or some other device such as a ventilation fan.

It is housed in a durable plastic enclosure with flanges provided for wall mounting and is designed with easy access wiring hubs on the bottom of the unit. The front of the PS 2 contains three lights; Pilot, Alarm 1, and Alarm 2. An internal audible alarm (85 db) is also built in which activates in a gas alarm condition.

The standard PS 2 is supplied with the gas sensor located on the end of a 30 foot cable (other cable distances are also available). Each unit is powered by 115 VAC standard or 24 VDC as standard (48 VDC versions optional), and the AC version comes complete with a 6' power cord.

Features:

  • LEL detection ranges available for many gases
  • 30 Foot Remote Cable
  • 2 alarm levels
  • Stand alone system
  • Input voltages: 115 VAC standard, 24 VDC or 48 VDC (optional)
  • Audible and visual alarms
  • Compact design
  • Simple installation
  • AC version equipped with power cord
  • Relay contacts rated 12A @ 115 VAC
  • Low maintenance

Downloads:

rki-ps2-datasheet    rki-ps2-manual
