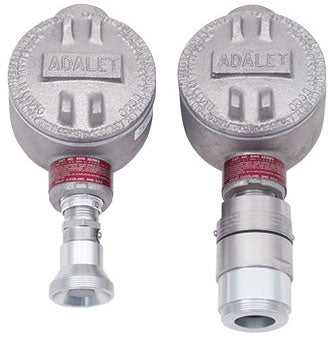

RKI Beacon Fixed System Sensor Detector Heads

RKI Beacon Fixed System Sensor Detector Heads



  • $250.00

These sensors are for use in either the Beacon 110, Beacon 200 or Beacon 410 Models.  Please call if you need any assistance.  These listed are the most commonly used.  EP=Explosion Proof.  The J-Box version is needed for remote runs away from the controller.

The RKI direct connect series gas sensors are highly reliable and very cost effective for the detection of common gas hazards. The direct connect series are available for LEL, H2 Specific LEL, Oxygen, H2S, CO, CO2, and for a variety of toxic gases. The sensors for LEL, Oxygen, H2S, Carbon Monoxide, and carbon dioxide are explosion-proof with flame arrestors, and approved for use in hazardous areas (Class 1, Groups B, C, D). An optional non-explosion proof version is available for oxygen in non-hazardous atmospheres.

The direct connect sensors can be used in two different ways. The sensors can be mounted directly to the controllers as a complete stand alone system, or they can be mounted to explosion proof junction boxes for remote detection.

The toxic sensors are electrochemical type plug-in sensors, which provide high specificity, fast response, and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in a class I, Div. 2 explosion proof area. Sensors available for Cl2, NH3, SO2, PH3, AsH3.

The direct connect sensors can be used either indoors or outdoors. The flame arrestors for the explosion-proof versions utilize a patented coating which make them water repellent. Also, splash guards are available for use in very wet environments, for some versions.

All of the direct connect sensors are designed to specifically interface with RKI controllers.


  • Water repellent patented sensor coating(except toxics)
  • Available for LEL, H2, O2, CO, H2S, and CO2
  • Available Toxic gases include Cl2, NH3, SO2, and more
  • Long life sensors (2 + years typical)
  • Explosion proof construction (Class I, Div. 1 for enclosure, Class I, Div. 2 for sensor)
