FrenchCreek R50G Tripod Winch

FrenchCreek R50G 3-Way Tripod Rescue Winch and Lifeline

Regular price

$1,505.00 Compare at $1,668.00

P/N:

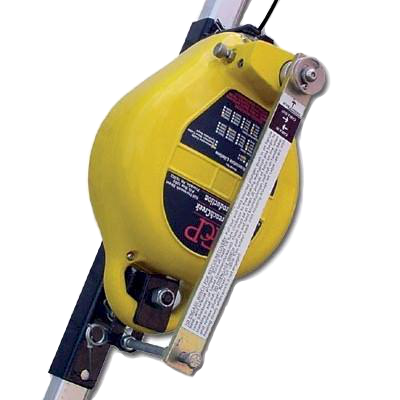

The R50 Series Unit is a self-retracting lifeline capable of raising and lowering for rescue or retrieval. It can be used horizontally. If a worker slips or falls, the breaking system engages and the fall is arrested. The system can then be activated into retrievel mode, raising or lowering the worker to safety.

The R50 also has a friction brake that prevents the crank handle from free-wheeling while under a load. The R50 Series units come equipped with a bracket to fit FrenchCreek's TP7 Tripod, TP9 Tripod, FCPD300 Davit System, and the FCPQ200 Quad Pod System. The unit also includes a #45 split pulley and carabiner for attaching the lifeline to an anchor such as a tripod.

Specifications:

  • 5.1:1 Gear Ratio
  • 350 lb capacity for personnel
  • Housing: Aluminum
  • Rope Drum: Aluminum
  • Brake Pawls: Bronze
  • Main Spring: Steel
  • Fasteners: Stainless Steel
  • 50' Galvanized 3/16 wire rope



Downloads:

frenchcreek-r50-winch-datasheet frenchcreek-r50-winch-manual

If you have questions about winch and lifeline inspection read Self Retracting Lifeline and Winch Inspection.
